원래 장소:
상하이, 중국
브랜드 이름:
YASEN
인증:
CE,ISO9001:2008
모델 번호:
IWS

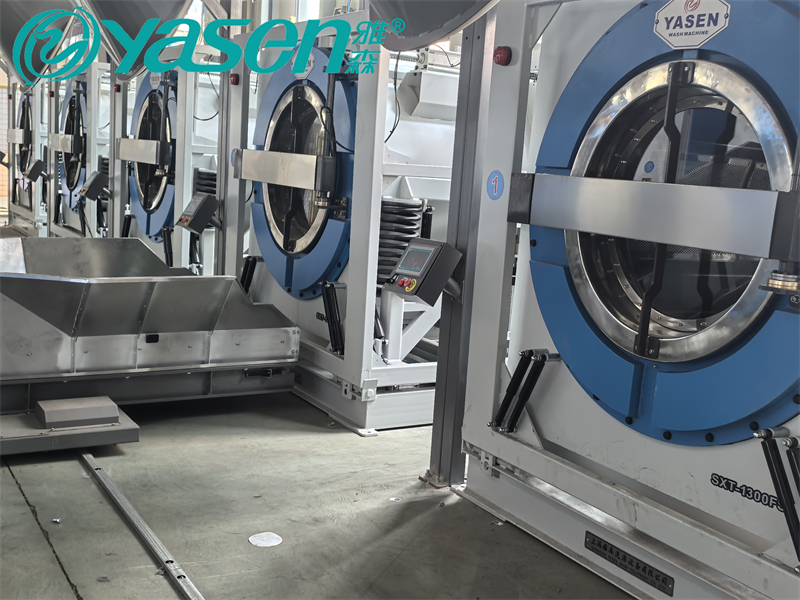

The two-way tilting industrial washer extractor is engineered for operational efficiency in heavy-duty laundry applications. This system features bidirectional tilting capability that facilitates automated loading and unloading when integrated with conveyor systems. The machine offers customizable programming options through its microprocessor control, allowing operators to tailor wash and extraction cycles to specific textile types and soil levels. Constructed with corrosion-resistant stainless steel components, it incorporates a full-suspension shock absorption system for stable operation during high-speed extraction cycles. The unit supports various capacity configurations and can be specified with multiple motor options to accommodate different production requirements.
| Technical Parameter | Unit | SXT-1300FS | SXT-1500FS |
|---|---|---|---|
| Rated Capacity | kg | 130 | 130 |
| Front Tilt Angle | ° (Degree) | 25° | 21° |
| Rear Tilt Angle | ° (Degree) | 25° | 26° |
| Cylinder Diameter | mm | 1300 | 1470 |
| Cylinder Depth | mm | 980 | 880 |
| Washing Speed | rpm | 35 (Variable) | 32 (Variable) |
| High-Speed Extraction Speed | rpm | 650 (Variable) | 610 (Variable) |
| Power Supply | V/Ph/Hz | 380/3/50 | 380/3/50 |
| Main Motor Power | kW | 11 | 15 |
| Heating Method | Steam | Steam | |
| Steam Pipe Diameter | inch | G1″ | G1.5″ |
| Steam Pressure | MPa | 0.4-0.6 | 0.4-0.6 |
| Cold/Hot Water Pipe Diameter | inch | G2″ | G2″ |
| Cold/Hot Water Pressure | MPa | 0.3-0.5 | 0.3-0.5 |
| Drain Outlet Diameter | mm | Φ127*2 | Φ140*2 |
| Compressed Air Pressure | MPa | 0.6-0.8 | 0.6-0.8 |
| Noise Level | dB(A) | ≤75 | ≤75 |
| Net Weight | kg | 4500 | 6800 |
| Overall Dimensions (W*D*H) | mm | 2070*2400*2085 | 2520*2380*2612 |
A Two-Way Tilting Industrial Washing Machine is a heavy-duty washer extractor designed with a tilting mechanism that allows the drum to tilt both forwards and backwards. This feature facilitates fully automated loading and unloading when integrated with conveyor systems, significantly reducing manual labor and improving workflow efficiency in high-volume laundry operations.
This machine is ideally suited for large-scale commercial and institutional laundry facilities that process heavy loads and require seamless integration with automated material handling systems. Common applications include:
The bidirectional tilting capability eliminates the need for manual loading and unloading of heavy, wet laundry. By tilting forward to discharge washed loads and backward to receive soiled ones, it enables a continuous, automated workflow. This minimizes operator fatigue, reduces cycle times, and increases overall throughput.
Yes, a key design purpose of the two-way tilting system is for seamless integration into a complete automated laundry line. It can be synchronized with automated sorting systems, conveyor belts, drying tumblers, and folding machines, creating an end-to-end automated process from soiled linen input to clean, ready-to-use output.
Yasen IWS Washing System is an integrated washing system based on automated single machines. It offers high extent of customization washing solution for the clients, which brings a comprehensive input-sorting-washing-drying-output solution.
Compared with tunnel washing equipment, Yasen IWS system is more flexible to configure, clients are allowed to select the particular quantity of washing or drying machines according to their actual washing needs. Clients are also allowed to upgrade the system with more machines in the future, in order to meet the increasing quantity of washing orders.
The structure is strengthened for the constant washing tasks, the airbag is optimized for 350G extracting power. The system also may connected with other processing equipment such as folders, ironers to save the time and the cost, then lower the energy consumption.
Yasen IWS system have strong mechanical maintenance convenience, which will keeps high running efficiency when one or more washer/dryer need maintenance.
When a certain machine need maintenance, users just need to push the machine out of the system and carry out maintenance independently while the whole system running is almost not effected when compared with tunnel washing equipment.
